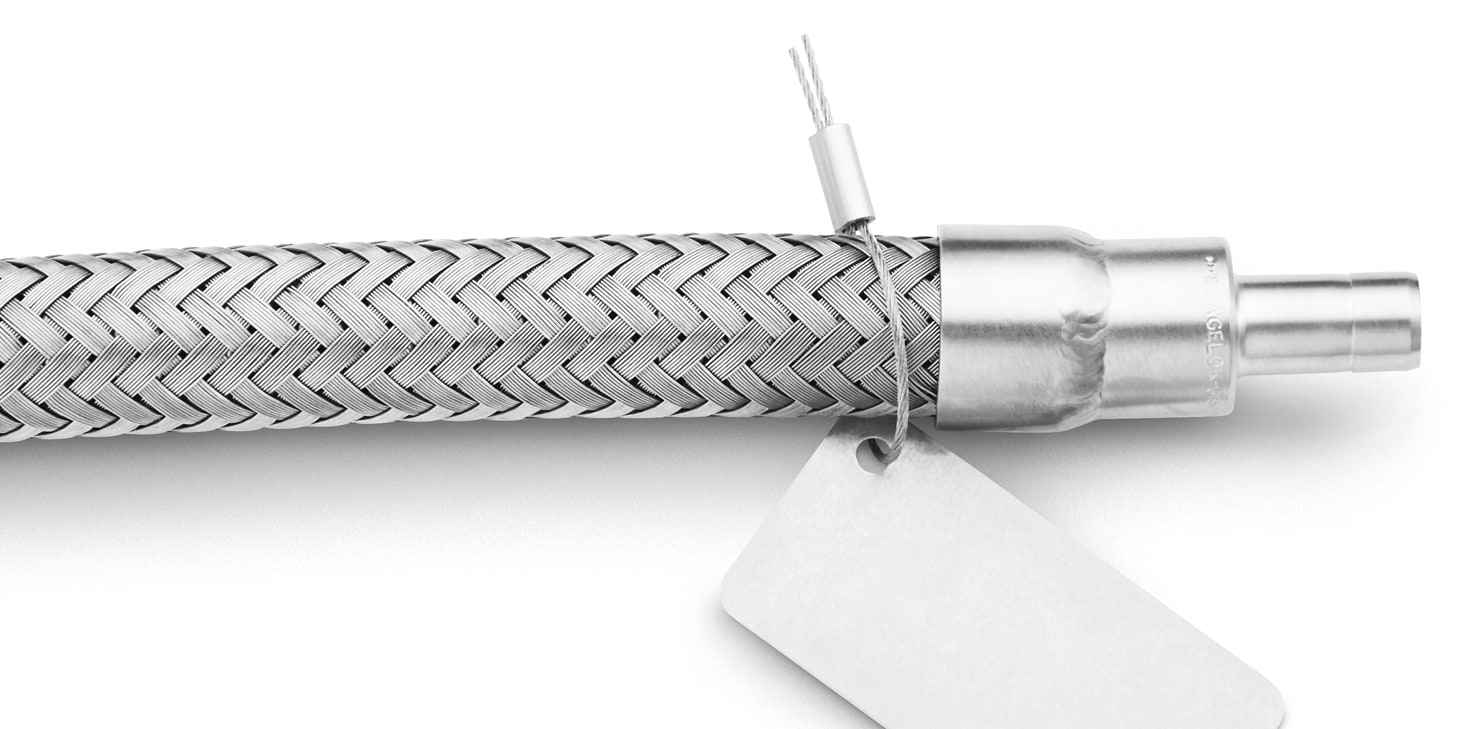

Double-Braided, High-Pressure Metal Hose

With pressures up to 6000 psig (413 bar), the new Swagelok® FX Series 321 stainless steel braided hose is suitable for a wide range of requirements. The convoluted core allows for flexibility and limits kinking. Available with a wide variety of end connections, it is commonly used in a high-temperature vacuum or in cases where permeation and corrosion are undesirable. The FX hose is specifically designed for high-pressure applications in:

Chemical

Compressed gas

Cryogenic

Hydrogen and fuel cell

Marine

Oil and gas

Power

Pulp and paper

Features

High-pressure, corrosion-resistant, all-metal hose
316L stainless steel annular convoluted core
Size range of 1/4 through 2 in. and working pressures from vacuum to 6000 psig (413 bar)
Double braid layers of 321 stainless steel promotes hose pressure containment (M)

End connections welded in accordance with ASME Boiler and Pressure Vessel Code Section IX
Commonly used in high-temperature vacuum and high-pressure corrosive environments or where permeation is undesirable
Standard and custom assemblies

Options include hose covers, hose tags, and helium leak testing

Available End Connections

Swagelok Tube Adapters	Swagelok Tube Fittings
Female VCO O-Ring Face Seal Fittings	SAE 37º (JIC) Female Swivel
Female Pipe Threads, NPT	Male Pipe Threads, NPT
